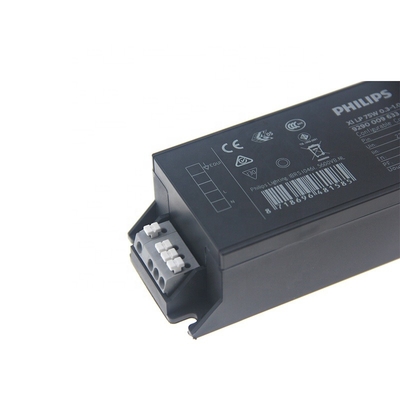

Led Flood Light XI LP 75W 0.3-1.0A S1 230V S240 sXt 929000963306 Driver PHILIPS LED Driver Good Middle Right Electronic Driver

1 Piece
MOQ
$23.90(1 - 499 Pieces) $22.00(500 - 999 Pieces) $20.00(>=1000 Pieces)
τιμή
Led Flood Light XI LP 75W 0.3-1.0A S1 230V S240 sXt 929000963306 Driver PHILIPS LED Driver Good Middle Right Electronic Driver
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: 929000963306
Output Power: 75W
Output Type: Single
Input Voltage: 230V
Output Frequency: 50/60HZ
Output Current: 0.3-1.0A
Product description: Xitanium 75W 0.3-1.0A S1 230V S240 LED driver
12NC: 929000963306
Efficiency: 92%
Packing: Carton
Ambient Temperature: -40...+55
Application: Flood Light
Warranty: 5 Years
Πιστοποίηση: CE / CCC / ENEC / CB
Lifetime: 100,000 Hours
Protection Class: Class I
Βασικές πληροφορίες
Πιστοποίηση: CE / CCC / ENEC / CB
Model Number: 929000963306
Πληρωμής & Αποστολής Όροι
Packaging Details: Led Drivers and modules: Philips original carton packing with MOQ.(usually 10pcs or 12pcs in one carton.) Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.
Περιγραφή προϊόντων
Product Description

Product Overview

LED-based light sources are an excellent solution for highbay industrial applications. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient LED Drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.

Benefits.

• Ultimate robustness and reliability secure the lowest luminaires maintenance overtime
• Best in class, thermal performance withstanding harsh High-bay industry applications
• Consistent waterproof performance throughout the lifecycle
• Easy to design-in, based on broad compatibility and superior thermal management
• Backed by a 5 year warranty from a company you can trust

Features.

• Proven robustness and reliable electronic driver design
• Achieving highest efficiencies based on advanced technology
• Extremely long lifetime, fitting with highbay industrial applications
• Independent/IP67 rated
• Dimmable through 1-10V interface
• Suitable for IEC insulation Class I systems
• Authorized certificates: CE, ENEC, CB and CCC

Application.

•Highbay industrial lighting

• Warehouse lighting
• Big-box retail store lighting



Datasheet

Electrical Input data

Specification item
Value
Unit
Condition
Rated input voltage range
220 ... 240
Vac
Performance
Input voltage range
198 ... 264
Vac
Operational
Rated input frequency range
50 ... 60
Hz
Performance
Input frequency range
45 ... 66
Hz
Operational
Rated input current
0.42 ... 0.33
A
230Vac, full load
Rated input power
82
W
230Vac, full load
Power factor
≥ 0.98
230Vac, full load. See graph
Total harmonic distortion
≤ 8
%
230Vac, full load. See graph
Efficiency
91
%
230Vac, full load. See graph

Electrical Output data

Specification item
Value
Unit
Condition
Regulation method
Constant Current
Output voltage
35 ... 108
Vdc
See graph
Output voltage max.
140
V
Peak voltage at open load
Output current
300 ... 1050
mA
Output current min dimming
105
mA
Output current tolerance
± 5
%
Output current ripple LF
≤ 4
%
Ripple = peak / average, 70Hz ... 1kHz
Output current ripple HF
≤ 15
%
Ripple = peak / average, > 1kHz
Output power range
4 ... 75
W

Electrical Data Control Input

Specification item
Value
Unit
Condition
Control method
1- 10V, Dynadimmer LITE
1-10V acc. IEC60929
Dimming range
10...100
%
Output current amplitude dimming

Operational Temperature and Humidity

Specification item
Value
Unit
Condition
Driver ambient temperature
-40...+55
oC
At nominal output power. Higher ambient temperature
allowed as long as Tcase-max is not exceeded.
Tcase-min
-30
oC
Min. steady-state Tcase
Tcase-max
+85
oC
Max. steady-state Tcase
Tcase-life
-30...+75
oC
For nominal driver lifetime
Maximum housing temperature
130
oC
In case of failure
Ambient temperature
-30...+80
oC
Relative humidity
10...90
%
Non-condensing

Lifetime

Specification item
Value
Unit
Condition
Rated driver lifetime
100,000
hours
Tcase ≤ Tcase-life

Programmable Features

Specification item
Value
Remark
Condition
Adjustable Output Current (AOC)
SimpleSet
See Design-in guide
1050mA
1-10V dimming interface
Yes
1-8V, 1-9V
Enabled, 1-8V
Constant Lumen Over Lifetime (CLO)
Yes
CLO LITE
Disabled
Diagnostics
Yes
Basic options
Enabled
Integrated Dynadimmer
Yes
Dynadimmer LITE
Disabled

Features

Specification item
Value
Remark
Condition
Open load protection
Yes
Automatic recovering
Short circuit protection
Yes
Automatic recovering
Over power protection
Yes
Automatic recovering
Overheating protection
Yes
Automatic recovering. See graph
Hot wiring
No
Suitable for luminaire insulation class
I and II
Per IEC60598

Dimensions

Specification item
Value
Unit
Condition
Length (A1)
240.5 ± 0.5
mm
Width (B1)
58.6 ± 0.3
mm
Height (C1)
37.8 ± 0.5
mm
Fixing hole diameter (D1)
4.5
mm
Screw: M4. washer: ø ≤ 10.5mm, torque: ≤1.5Nm
Fixing hole distance (A2)
226.2 ± 0.5
mm
Fixing hole distance (B2)
42.9 ± 0.3
mm
Weight
640
gram
Packing & Delivery
Packaging
Size
26*21.5*13.5cm
Weight
12kg



Packaging Details
Led Drivers and modules: Philips original carton packing with MOQ.( 12pcs in one carton.)
Led Light: Philips original carton packing(usually 1pcs in one carton)
Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.
Our Company

Shanghai Bipeng Lighting Limited Company is the core distributor of Philips professional lighting products. We mainly focus on LED Drivers and Modules, LED lights which are mainly applied on roads and Industry factories. Every product catalog is composed of over hundreds of product code.

We can offer out standing lighting solutions, depending on our high efficiency management team and strong technician team. Through these years' efforts, we have been recognized and appreciated by many clients coming from mainland,southeast Asia,Europe and America market.

We promise to providing our clients with high quality products and services. At the same time, we have been working with excellent Surge protective device Manufacturer- CITEL and LED dimming Products Manufacturer -EUCHIPS.


Certifications

Certifications please see attached photoes.

We have been certified by CE, CB, CCC and ENEC.

FAQ


Q1. Are you Philips Authorized agents?
A:Yes, we can offer Philips Authorized Certificate.

Q2: What's your main products?
Led Drivers and modules. Road Light, Street Light and Highbay Lights.
We still can offer one step lighting Solution, depending on good cooperation relation with China(mainland) Lighting Manufacturers.

Q3. How about the delivery time ?
LED driver and modules Sample: 5-7days
LED driver and mudules Bulk Order: need recheck with us, usually 30-40 days.
LED Lights(sample& Bulk Order): need recheck with us, usually 30-40 days.

Q4. What is the Transaction terms ?
A: Samples: Cash before shipping.
B: Bulk Order: 50% in advance(deposit), 50% of the balance should be paid before shipping.

Q5. How is the Logistics and Transportation time ?
A Samples: International Express Service- DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
B.Bulk order : Airline and Sea shipping are available. Transportation time: need recheck with logistic company.

Q6. Do you have a minimum order?
Bulk order: Philips Original MOQ Packing(usually, 10pcs -12pcs in one carton).

Q7: How Long is the Quality assurance Time?

Philips Official Quality Assurance Time(Usually, 3-5years depend on products.)
