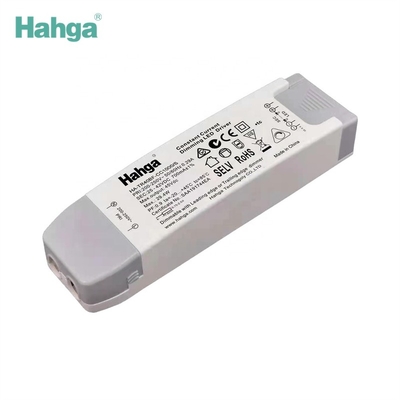

Panel Light 5 Years Warranty 40w Triac Dimmable Led Driver For Led Lighting

1 Piece
MOQ
Panel Light 5 Years Warranty 40w Triac Dimmable Led Driver For Led Lighting
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Model Number: HA-TR040BF-CC1000/S
Output Power: 40W
Output Type: Single
Input Voltage: 100-250VAC
Output Frequency: 50-60Hz
Output Current: 1000mA
Product Name: CC Triac Dimmable LED Driver
Power: 40W
Power Factor: 0.9
THD: 15%
Efficiency: 78%
IP grade: IP20
Size: 157*44*29mm
Dimming type: Triac
Application: Panel light, down light, spot light etc.
Βασικές πληροφορίες
Model Number: HA-TR040BF-CC1000/S
Πληρωμής & Αποστολής Όροι
Packaging Details: 1pc/box 20box/ctn
Supply Ability: 100000 Piece/Pieces per Month
Περιγραφή προϊόντων
Hahga
Products Description
Model
HA-TR012B-CC300/S
HA-TR040BF-CC1000/S



Input
Voltage Range
AC100-250V
Limited Voltage
265VAC
Power Factor
>0.9
T.H.D
<15%
Efficiency
78%
78%



Output
Rate Power
12W
40W
Rate Current
300mA
1000mA
DC Voltage
DC25-42V
DC25-42V
Current Accuracy
±3%
Power-on Time
<0.5s

Protection
Short Circuit
constant voltage mode, recover automatically after fault condition is removed
Over Loading
≤120% constant voltage limiting, recover automatically after fault condition is removed
Over Temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down


Others
Ta
45℃
Tc
85℃
IP rating
IP20
Life span
30000hours
Warranty
3years
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Company information
About Hahga
Hahga is specialized in R&D and manufacturing dimmable LED driver,non-dimmable LED driver and LED emergency driver. Hahga focus on indoor and waterproof IP67 dimmable LED driver,which includes Triac/Phase-cut dimming,0/1 10V,dimming,DALI,dimming,Push dimming,Bluetooth dimming,ZigBee dimming, Wifi Dimming,etc. Hahga products have been exported to numerous oversea markets with UL,ETL,FCC,ENEC,TUV-CE,CB,SAA,DALI-2,RoHS and other certificates.

PROFESSIONAL R&D and PRODUCTION

With advanced production equipment and standardized production management,the production capacity of 200,000 pieces per month can be guaranteed.
DALI Testing
Wave Soldering
Plug-in Components assembling
Reflow soldering

QUALITY ASSURANCE

Multi professional testing process and testing equipment to ensure product quality.
Safety Test
Aging Test
EMI Tester
In-Circuit Test System
Packaging & Delivery

DELIVERY ASSURANCE

Reasonable inventory plan and Official logistics cooperation to ensure fast shipping.
Warehouse
Delivery
Certifications
Related Products
FAQ
1. How about your goods’ quality? All products provided by Hahga with 100% burn-in tests, full round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL ENEC certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it? 5 years. If any failure caused by quality issue, we send replacement with next order, or refund.
3. What is your minimum order quantity? The MOQ is 1pcs.
4. Which payment terms you can accept? We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer? By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.
6. How about your delivery time? 3-7 working days according the order quantity.
7. Can you provided OEM Service? Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
