Αρχική Σελίδα /Προϊόντα/Οδηγός των RGB οδηγήσεων/High Efficiency Small Size Low Voltage Dimming LED Driver Non Isolation Circuit Design Flickerless Protection Function Waterproof Power

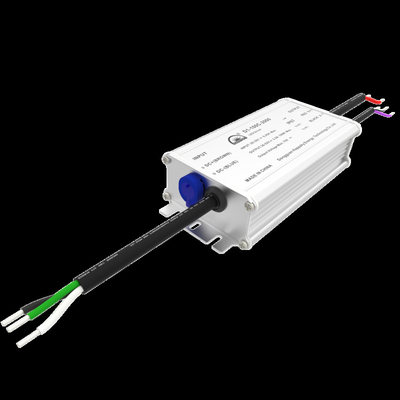

High Efficiency Small Size Low Voltage Dimming LED Driver Non Isolation Circuit Design Flickerless Protection Function Waterproof Power

100 pieces
MOQ
$13.00(100 - 999 pieces) $12.00(1000 - 6665 pieces) $9.00(6666 - 9999 pieces) $8.00(>=10000 pieces)
τιμή
High Efficiency Small Size Low Voltage Dimming LED Driver Non Isolation Circuit Design Flickerless Protection Function Waterproof Power
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design, LitePro DLX layout
Product Weight（kg）: 0.39
Model Number: D1-100C-1920
Output Power: 51 - 100W
Output Type: Single/DUAL
Input Voltage: 20-48V
Output Frequency: 47~63HZ
Output Current: 1.92A
Product Name: LED DRIVER
Application: Street Lights
Πιστοποίηση: CE ROHS
Type: Consant Current
Efficiency: 93%
IP Rate: IP 67
Protections: Short Circuit Overtemp Overload Overvolt
Dimming: 0-10V
Feature: Small Sized High Efficiency
Βασικές πληροφορίες
Πιστοποίηση: CE ROHS
Model Number: D1-100C-1920
Πληρωμής & Αποστολής Όροι
Packaging Details: Outside Carton dimension: L*W*H=45*30*18CM;22 Units/Carton;Net weight per unit: 0.63kg;Gross weight per Carton: 14.36kg
Supply Ability: 10000 Piece/Pieces per Week
Περιγραφή προϊόντων
Products Description
Product Paramenters
Model
Input Voltage

          (V)
Output Voltage

             (V)
 output current
        (A)
Max output power (W)
Efficient
Dimensions

       (mm)
D1-30C-600
20-48
36-54
0.6
30
0.9
70*66*31
D1-50C-1000
20-48
36-54
0.96
50
0.9
105*66*31
D1-60C-1150
20-48
36-54
1.15
60
0.91
105*66*31
D1-80C-1530
20-48
36-54
1.53
80
0.91
148*66*34
D1-100C-1920
20-48
36-54
1.92
100
0.92
148*66*34
D1-120C-2300
20-48
36-54
2.30
120
0.92
165*66*34
D1-150C-2750
20-48
36-54
2.75
150
0.93
165*66*34
D1-200C-3900
20-48
36-54
3.90
200
0.94
165*66*34
D2-30C-300
36-60
70-120
0.3
30
0.9
70*66*31
D2-50C-500
36-60
70-120
0.5
50
0.9
105*66*31
D2-60C-600
36-60
70-120
0.6
60
0.91
105*66*31
D2-80C-800
36-60
70-120
0.8
80
0.91
148*66*34
D2-100C-1050
36-60
70-120
1.05
100
0.92
148*66*34
D2-120C-1200
36-60
70-120
1.20
120
0.92
165*66*34
D2-150C-1250
36-60
70-120
1.25
150
0.93
165*66*34
D2-200C-1660
36-60
70-120
1.66
200
0.94
165*66*34
DAC-20-56
20-48
30-56
0.3-0.7
20
0.9
107.5*45.5*36
DAC-30-56
20-48
30-56
0.3-1.0
30
0.9
107.5*45.5*36
DAC-50-56
20-48
30-56
0.5-1.65
50
0.9
118*66*31
DAC-60-56
20-48
30-56
0.5-2.0
60
0.91
118*66*31
DAC-80-56
20-48
30-56
0.5-2.66
80
0.91
148*66*34
DAC-100-56
20-48
30-56
1.0-3.0
100
0.92
148*66*34
Our Advantages
Company Profile
Dong Guan Happsky Energy Technology Co.,Ltd.

Dong Guan Happsky Energy Technology Co.,Ltd. is a technology company specializing in LED power research, development, produce, sale and service. The main products are LED waterproof power supplies and LED drivers. Thanks to the benefit of location and senior professional technical team, we have developed steadily and rapidly, as one of the top manufacturers in this line. Now, we have produced a series of popular and useful items after a good connection with marketing and uninterrupted testing.
Certifications and Exhibition
Happsky products are certified by safety agencies including:UL,ENEC,CB,CE,TUV , CCC,FCC, SAA , BIS,RoHS, Happsky products also conform to EMC regulations from Europe and FCC in North America In additional gained certification ISO-9001:2015 quality Management System Certification to guarantee the quality of the products.

International Exhibition
The 19th Hong Kong International Autumn lighting exhibition 2017
Exhibition Time: 27.OCT.2017-30.OCT.2017
Exhibition Location: Hong Kong
International Fair of Lighting Equipment 2018
Exhibition Time: 31.JAN.2018-2.FEB.2018
Exhibition Location: Poland

China(Ningbo) International Sourcing Fair

Exhibition Time: 9.MAY.2018-11.MAY.2018
Exhibition Location: NINGBO

Las Vegas Convention and Exhibition
Exhibition Time: 1.MAR.2019
Exhibition Location: LAS VEGAS
China Guangzhou International Floor Fair 2019
Exhibition Time: 7.MAY.2019-11.MAY.2019
Exhibition Location: GuangZhou
Manufacturing Technique
Product packaging and Shipping
shipping :
7-21 working days since payment receipt (based on actual quantity)
Tracking number will be sent to you after delivery.
Payment :
We accept T/T.
If you have any problems about the payment , pls feel free to contact us.
Why Choose Us
1. who are we? We are based in Guangdong, China, start from 2010,sell to Mid East(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(10.00%),North America(10.00%),Western Europe(5.00%),Eastern Asia(5.00%),Central America(5.00%),Domestic Market(3.00%),Africa(2.00%),Southeast Asia(2.00%),Southern Europe(1.00%),South America(1.00%). There are total about 300-500 people in our office. 2. Do you have MOQ requirement and can I buy the products with my own logo? You can customize your own logo. For customized customers, we have no minimum order quantity requirements. For ordinary customers, our minimum order quantity is 1000 pieces. 3. Shipping time We always have materials in Stock, the delivery time is very short. Regarding to the samples, we have samples and materials in stock.. Samples:1-3 days, big order:5-10days 4. Service We have a professional service team to solve all the questions and problems. No worry about the after-sales service. 5. How about your R&D capability? We have professional engineers for certifications and research&development. Moreover, we have passed UL,ENEC,CB,CE,TUV, CCC,FCC, SAA , BIS,RoHS and updated DALI LED driver series. 6. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDU,Express Delivery； Accepted Payment Currency: USD; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash; Language Spoken:English,Chinese 7. Is there any discount for large qty? We provide discount based on the qty .
