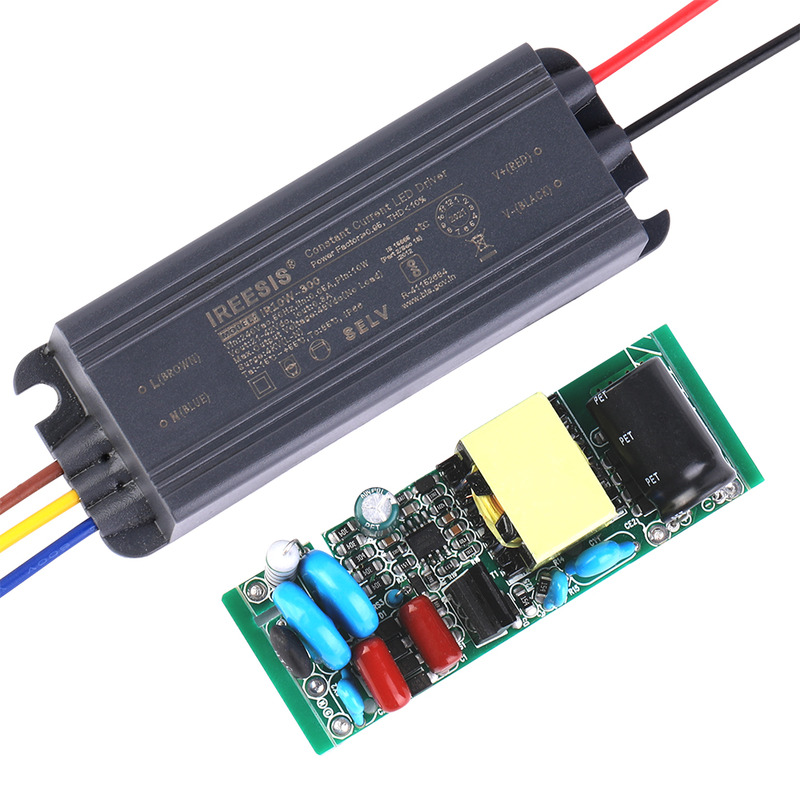

LED Flood Lighting Lighting Accessories Waterproof 50W High Power Supply Led Driver

1.0 Pieces
MOQ
$1.69(1 - 999 pieces) $1.59(1000 - 4999 pieces) $1.49(>=5000 pieces)
τιμή
LED Flood Lighting Lighting Accessories Waterproof 50W High Power Supply Led Driver
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Product Weight（kg）: 1
Model Number: MKT001
Output Power: 51 - 100W
Output Type: Multiple
Input Voltage: 220V
Output Frequency: 1
Output Current: 300 MA
Brand: iREESIS
Protections: Short Circuit Overtemp Overload Overvolt
Working temperature: -30~ 65℃
Application: LED flood lighting,street lighting
Waterproof rate: IP65
Case material: Plastic
Size: 92*33*25
Efficiency: 85%
Safety standards: Design refer to EN60950-1, EN61347-2-13
AC input frequency range: 47~63Hz
Luminous Efficacy(lm/w): 100
Βασικές πληροφορίες
Model Number: MKT001
Πληρωμής & Αποστολής Όροι
Supply Ability: 150000 Piece/Pieces per Month
Περιγραφή προϊόντων

Lighting Accessories High Power Supply Waterproof 50W Led Driver
General Specification
AC input voltage range
85~440Vac
AC input frequency range
47~63Hz
AC inrush current (max.)
Cold start , 30A at 230Vac，Full load
Over voltage protection
115% ~135% rated output volteage
Turn on delay time
< 1.0 S@ Full load
Dielectric strength
>2.5KV (L~N)
Ingress protection
IP66
Working temperature
-30 ~+ 65℃
Working humidity
20%~90% R.H.
Storage environment
-40 ~+ 85℃, 0%~95% R.H.
Safety standards
Design refer to EN60950-1, EN61347-2-13
EMC standards
N/A

Connection
Input
0.4²× 3C (Line: Brown, Neutral: Blue, Ground: Yellowish green ), Length:40cm
Output
0.4²× 2C (+: Red, -: Black) ,Length:25cm
Dimension ( L×W×H )(mm)
92x33x25
Features
∙ Nominal voltage:180-277Vac / Full range
∙ Power factor: ≥ 0.95 / Full range
∙ Total Harmonic Distortion(THD): ≤ 10%
∙ Protections: Open circuit / Short circuit/Overload
∙ Cut off：Input overvoltage & undervoltage cut off
∙ OTP: Tc ≥ 85℃，Reducing Current
∙ Constant current design
∙ Low cost , high reliability
∙ Current ripple: < 30%
∙ Cooling by free air convection
∙ Surge：4KV/6KV (L~N)
∙ Can withstand input voltage of 440V for 8hrs
∙ Suitable for LED flood lighting, street lighting
∙ 5 years warranty, MBTF > 10000 hours


OEM/ODM
CUSTOMIZED SERVICES
Constsnt Current Design
Safe & High Reliability
Surge Protection
Fujie Optoelectronics (huizhou) Co., Ltd.
Iresis photoelectricity (zhongshan) co., ltd. since its inception in 2017, continue to focus on LED power products R&D, manufacturing, sales, technical servicesfter long-term unremitting efforts. it now has a certain market share in China. With the increasing growth of import and export trade, to further meet the import and export needs of traders. We provide businesses with professional, personalized and all-round services, our company has formed a complete external power supply system.
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer.We have one factory in Zhongshan, Guangdong, China.

Q2. Can I get sample?
A: Sure, If you need sample, pls tell me your spec need, or tell me your led light info, then i will recommend you
suitable led driver with good price, after confirm details, we will arrange the samples for you to test. Welcome sample
order to test and check quality.

Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.

Q4: Does your company accept OEM&ODM?
A: Yes, welcome OEM&ODM.

Q5:What is your advantages?
1. OEM/ODM is welcome, over 15 years of experence.
2. High efficiency, low power consumption led light driver.
3. CE(TUV),RoHs, SAA, C-tick,RCM, FCC and ETL approved.
4. Stable quality, burn-in tests with 100% full load for more than 4 hours.
5. Over-heat, over-load, short-circuit & open-circuit protection.
6. Offer 2,3 or 5 years warranty and maintain our repair rate below 0.3%.
7. We will apply 0.3% spare parts on bulk orders.
