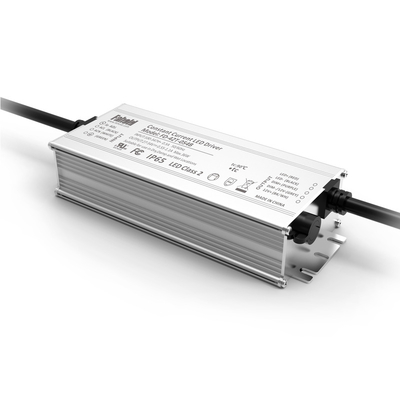

LED Lighting Driver Waterproof Constant Current LED Driver 40W 50W 5 Years Warranty Led Flood Light Driver

Input characteristics

Input Voltage

100-347Vac

Input Frequency

50/60Hz

Input Current (Typ.)

0.6A @ 100-347 Vac , 100% load

No load Voltage

2Wmax

Inrush Current

60Amax. @ 230Vac, 25℃

Power factor(Typ.)

PF>0.95 @ 100-347 Vac, 100% load

THD

THD<20% @ 100-347 Vac, 100% load

Output characteristics

Current accuracy

± 5% I0

No load Voltage

Vout 63V max

Efficiency

≥86% @ 120 Vac, ≥85% @ 347 Vac

Output Voltage

27-54VDC

Ripple and Noise

800mVp-p

Line Regulation

3%Io

Load Regulation

3%Io

Turn On Delay Time

Under normal conditions, the maximum delay time is 2 second

Protection functions

Open circuit

When the LED disconnection the product is protected such as hiccup or when it is at the highest point of output voltage, the power supply shall be self-recovery when the fault condition is removed.

Short Circuit

The input power shall decrease when the output rail short, the power supply shall be self-recovery when the fault condition is removed.

Environmental conditions

Operating Temperature

-40℃ to +60℃

Operating Relative Humidity

10% to 90% RH, non-condensing

Storage Temperature

-40℃ to +85℃

Storage Relative Humidity

10% to 90%RH, non-condensing(Sea level to 2,000 m)

Vibration

10 to 500HZ Sweep at constant acceleration of 1.0G (depth: 3.5mm )for 1 Hour for each of the perpendicular axes X, Y, Z.

Degrees of Protection

IP65

Safety compliance

Safety Standard

GB19510.1,GB19510.14;EN61347-1,EN61347-2-13;UL8750, CSA C22.2No.250.13-12.

Dielectric Strength

P-S:3750VAC/5mA/60S P-E:1500VAC/5mA/60S

P-E:500VAC/5mA/60S

Insulation Resistance

I/P-O/P:>50M Ohms / 500VDC / 25℃ / 70% RH.

Leakage Current

The leakage current shall be less than 0.25mA for Class 2 at maximum input voltage

EMI

GB17743,GB17625.1; EN55015, EN61000-3-2, EN61000-3-3, FCC Class B.

EMS

EN 61000-4-2, 3,4,5,6,8,11, EN 61547.

Surge Immunity

Severity Level : Level2/2, DM- 4kV

Severity Level : Level3/3, CM-6.0kv

Performance Criterion:B

Reliability

Life Time

≥5Years H@230Vac, 100% load. See lifetime vs. Tc curve for the details

MTBF

≥ 200,000H@ 25℃, 230Vac, 80% load. (MIL-HDBK-217F)

Warranty

5 years

Others

Dimensions

137*48*32mm(L*W*H)

Weight

370±10g

Remark

1. The parameters above including the power factor, THD, efficiency are all tested under the ambient temperature 25℃ and humidity 50%, AC input 230V and 90% output load.

2.Io is rate output current.
